Advanced PVC Granulating Line for High-Quality Production
PVC Granulating Line
Product Profile
The machine consists of extruder assorting with relative granulating auxiliary machine. It is mainly used in the processing of PVC granules and grains produced and uniform, dense and beautiful to look at. granulator machinery.The machine has same features. It can fine plasticizing, high productive efficiency, impact construction in the whole machine and high automatization, adopts conical twin screw installs on the extruder, and the PVC material mixture with other materical,such as: CaCO3, CPE, static, wax and so on. The granules/ pellets can be used to producing PVC profiles and shoes, and so on. This machine with Twin screw extruder, pelletizing/ granulating mould, hot face cutting machine, hot wind convey system for discharge.This extruder can process rigid and soft PVC.Twin-screw Pelletizing Line 80 Conical Twin-screw Pelletizing Line is independently developed by us. PVC transparent soft material, PVC transparent rigid material, PVC Plastic Calcium Pelletizing Line, PVC cable pelletizing capacity 330kg.
The line include
1.SJSZ80 / 156 Conical Twin-screw Extruder 1 set

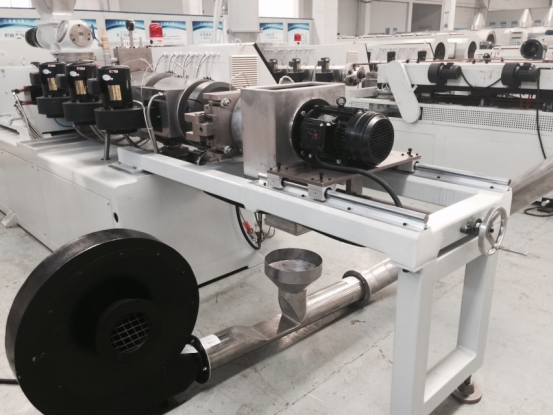

2. Harvard Manual Quick Change Net Hot Cutting Machine Head 1 set
3. Stainless Steel Three-stage Blowing Cooling Unloading Device 1 set

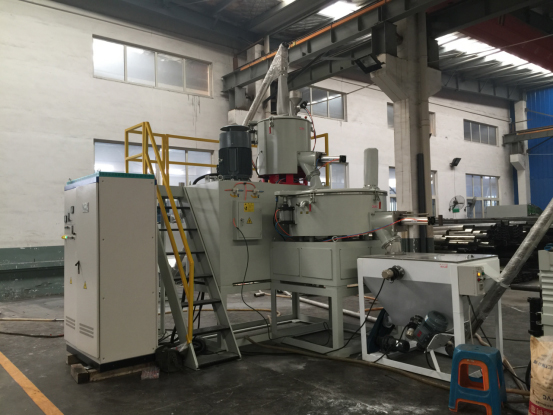

4. SHR-300/600 High-cooling mixing unit 1 set
Ⅰ) PVC Twin-screw Pelletizing Line 80 Conical Twin-screw Pelletizing Line’s configuration and requirements: Main unit SJSZ80 / 156 conical twin-screw Extruder rack with high-quality steel and high-strength sheet welding. Gearbox adopts rugged tooth surface Gear gears. In the hollow shaft output, there is a super-specific thrust bearing, withstand the rear thrust of the screw.

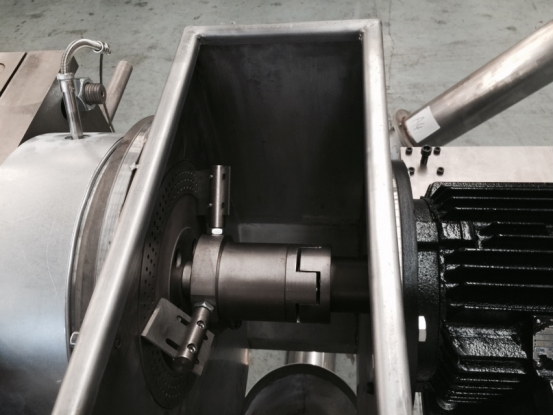

Ⅱ) Harvard Manual Quick Change Net Hot Cutting Machine Head
a.Filter plate diameter:100mm
b. Filter plate locking method: Harvard lock
c.Single skilled network time: 60seconds
d.Diameter of the discharge plate:2.8mm
e.Granulator Motor Power:750w
f. Granulation rotary speed and speed range;0—600r/min

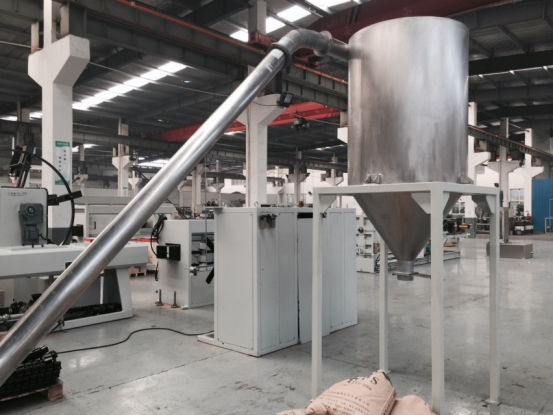

Ⅲ) Stainless Steel Three-stage Cooling Air Delivery Device
