PC-SW Series-Profile Pipe Special Crusher
PC-SW Series-Profile Pipe Special Crusher
Product Profile
The PC-SW series crusher is a model specially designed to crush long pipes and wide profile pipes. The feeding port is almost parallel to the ground, and it is extremely convenient for longer-sized materials, such as small-diameter PVC pipe and wide profile. When the crushing room put too much solid waste, the rotor will no longer accept more material to crush until the materials are crushed. Therefore, you don't have to worry about the problem of blockage.
Applicable Materials
PC-SW series crusher is suitable for various 16-300mm PE, PP, PVC, plastic pipe, wide door plate, sheet, plate. When large crushing capacity is needed, feeding belt, suction unit and dust removal system can be equipped.
|
Items |
Unit |
PC-SW600/500 |
PC-SW560/700 |
PC-SW560/1000 |
PC-SW700/1400 |
|
|
Feeding port size |
mm |
440 x440 |
640 x280 |
910 x280 |
1440 x320 |
|
|
Rotor diamater |
mm |
600 |
560 |
560 |
700 |
|
|
Rotating speed |
mm |
560 |
470 |
470 |
410 |
|
|
Motor power |
kw |
37 |
55 |
75 |
110 |
|
|
Rotor blades |
pcs |
5 x2 |
5 x2 |
5 x2 |
5 x3 |
|
|
Fixed blades |
pcs |
2 |
2 |
2 |
2 |
|
|
Hydraulic station power |
kw |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Screen size |
mm |
6~30 |
6~30 |
6~30 |
8~30 |
|
|
Crush room size |
mm |
516 x498 |
716 x650 |
985 x650 |
1400 x700 |
|

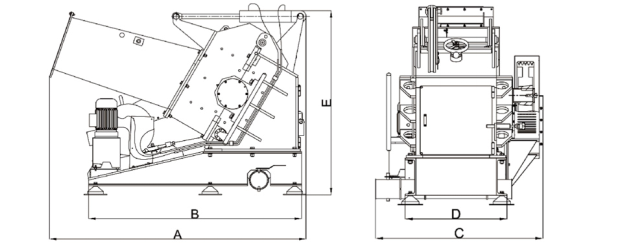

| Dimension |
Length A |
mm |
2250 |
2400 |
2400 |
2480 |
|
Length B |
mm |
1860 |
2200 |
2200 |
2320 |
|
|
Width C |
mm |
1350 |
1800 |
2050 |
2400 |
|
|
Width D |
mm |
820 |
1060 |
1480 |
1840 |
|
|
Height E |
mm |
1620 |
1750 |
1750 |
1980 |
|
Product model and main parameters
The manufacturer reserves the right to change the specifications for product improvement. If a product discrepancy occurs against our catalogue, no notice will be given.
