PET Bottle Flakes Pelletizing Line
PET Bottle Flakes Pelletizing Line
Features
PET Bottle Pelletizing Line adopts traditional Relay Electrical Control. Temperature control is Advanced Digital Temperature Control Form PID Adjustment. The main engine and feeding implementation are interlock controlled. The operator panel has a heating and disconnection alarm and main aircraft operation, alarm indication, etc. Button operation.
PET Bottle Pelletizing Line characteristics:

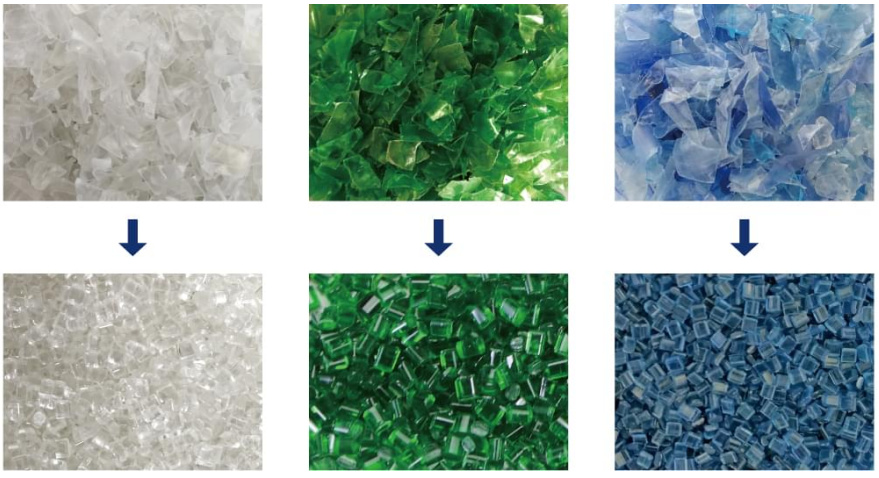

1.Treated PET bottle flakes are pelletized after washing, and moisture content is within 5%.
2.Three segments and Roots Vacuum Pump, with good exhaust effect.
3.PET Bottle Pelletizer is a Double-screw Extruder with excellent mixing properties, good self-washing, flexible modular combination characteristics. PET Bottle Pelletizing Machine does not require a complex Pre-crystallized drying system, achieving ideal PET viscosity control, low IV decline, adding suitable auxiliaries to achieve increasing adhesion.
| Mode | Tssk-50 | TSSK-65 | Tssk-75 | Tssk-95 | Tssk-135 |
| Screw Diameter(mm) | 50.5 | 62.4 | 71.2 | 91 | 132 |
| Main Motor Power(kw) | 37-55 | 55-90 | 110-160 | 250 | 500kw |
| Capacity（kg/h） | 80-120 | 200-280 | 300-500 | 500-900 | 2000 |
Detailed features
◆ The Screw Material: 38CrMoAlA nitrogen treatment or double metal
◆ The screw assembly of computer-aided design is kneaded and has an excellent self-washing function.
◆ High performance degassing
◆ Available to see the machine working if you come to our factory
◆ Able to design the machine according to your material
◆ One year warranty, but provide lifelong after-sales service
Double Screw Extruder and PET Bottle Pelletizing Line

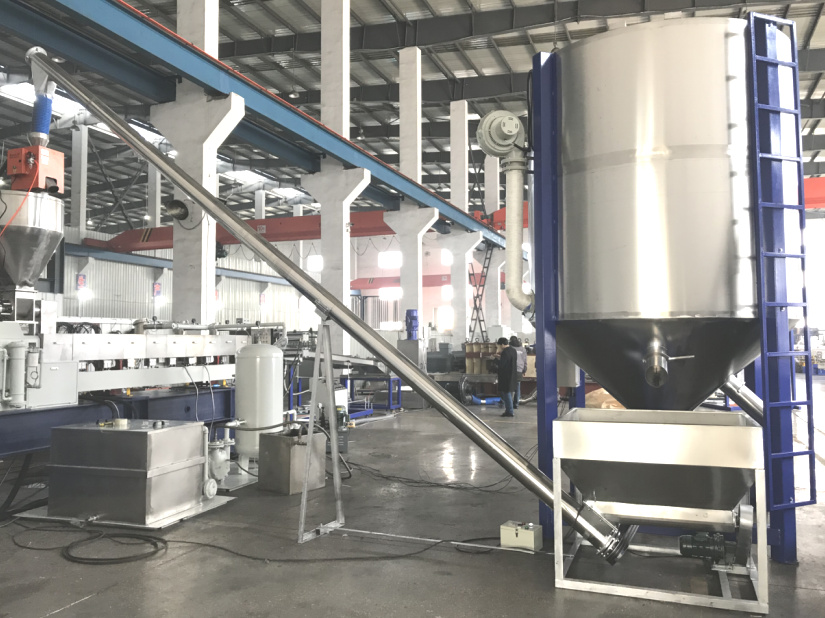

Dehumidifying Dryer →Screw Feeder→Quantitative Feeder→Hydraulic filter Mesh Changer→Water Tank→Dryer→Pelletizer→Vibrating screen(Optional)→Air supply system→Silo

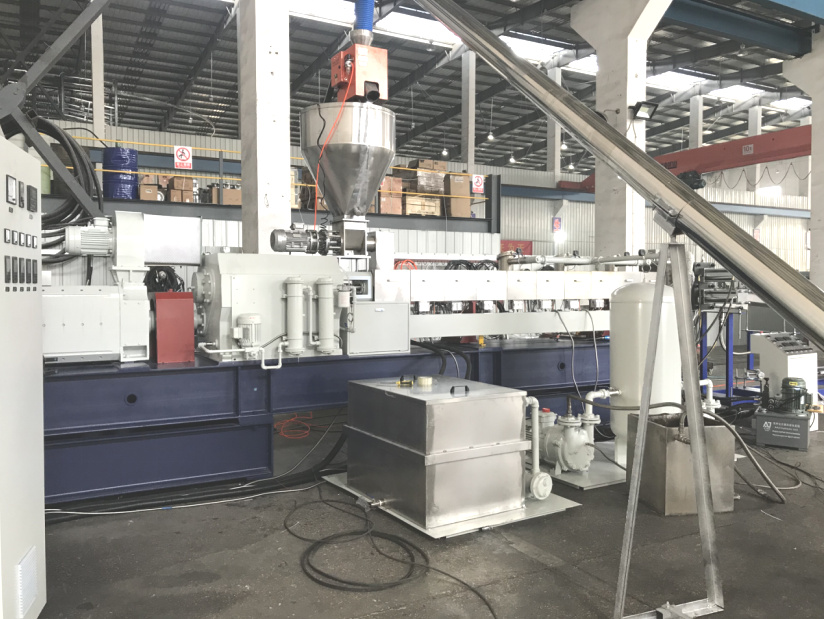

Extruder
It consists of a deceleration box (high torque, low noise, external cooling cycle system), 38CrMoA1 screw treated with nitride, cylinder (38CrMoAlA, nitride treatment, cylinder fan cooling, controlled by temperature control meter), and vacuum system.

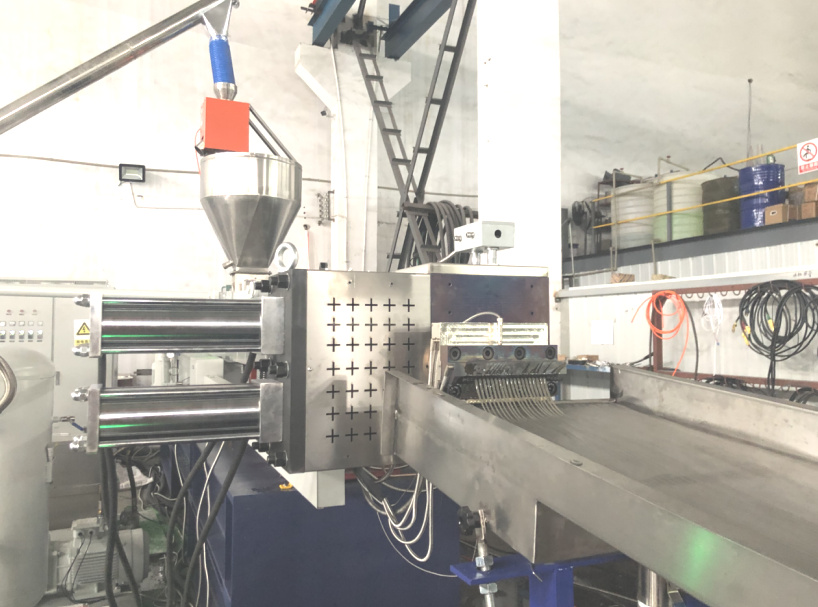

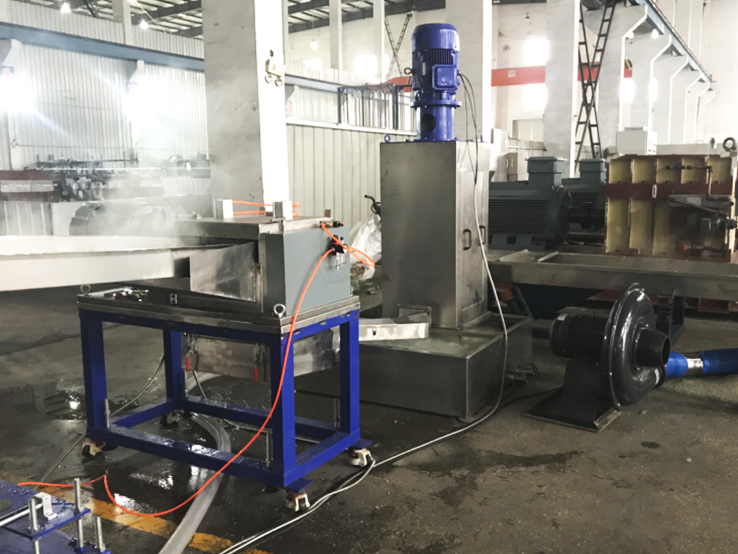

Water Cooling Strand Cutting System
Water Cooling Strand Cutting System includes a Cooling Tank, strong wind drying, and a Pelletizer that cools the plastic strands from the Extruder.
