PC Series-Special Crusher for Film and Bottle
PC Series-Special Crusher for Film and Bottle
Applications

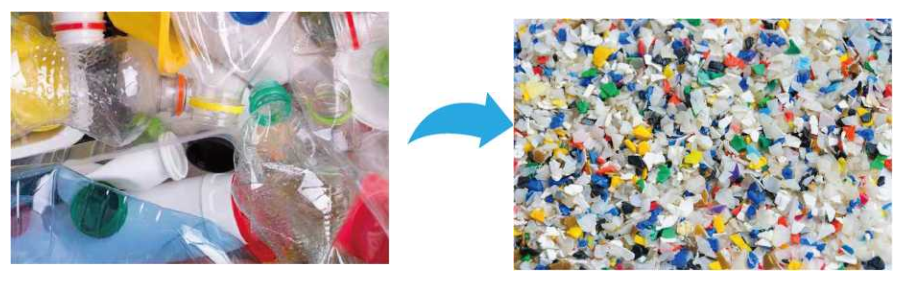

Ensures smooth size reduction of plastic and rubbery products, such as PP, PE, PET, PVC in all sizes. The crusher is usually used as secondary shredding due to its high rotational speed and sharp blades. Featuring robust welded steel construction and stable operation, but during crushing, metal and similar hard foreign objects are not allowed to be disposed of into crushing chamber. 4 rotors are tailored for versatile applications and producing uniform regrind, whose size is determined by screen opening.

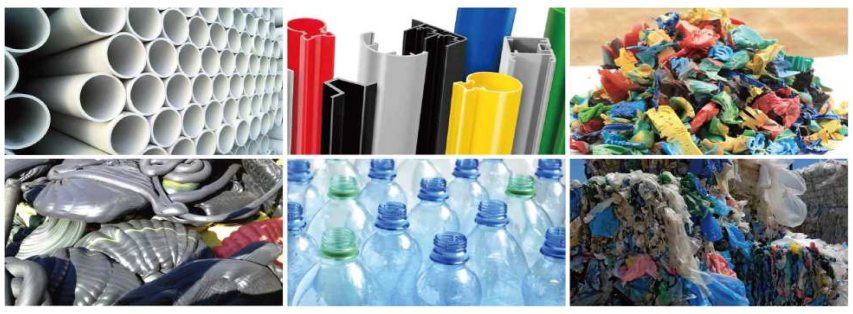

The resulting regrind can be pneumatically conveyed and collected, forming a simple recycle line with no dust and reduced labour cost.Plastic lumps, sheets, films, pipes, bottles, sprues, runners, rejects, etc.
Features
◆ Main electrical components are trusted brands such as Siemens and Schneider.

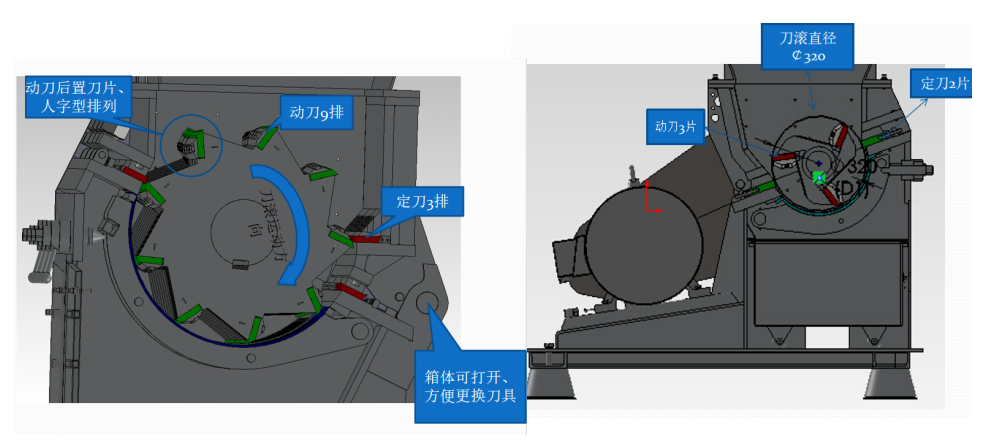

◆ Hopper & cradle are hydraulically actuated for easy blade & screen replacement.
◆ Rotary and counter blades can be re-sharpened, greatly reducing operating cost.
◆ Screen is easily interchangeable.
| Item Model |
PTL580 |
PTL5100 |
PTL5120 |
PTL6100 |
PTL6120 |
PTL8120 |
PTL8160 |

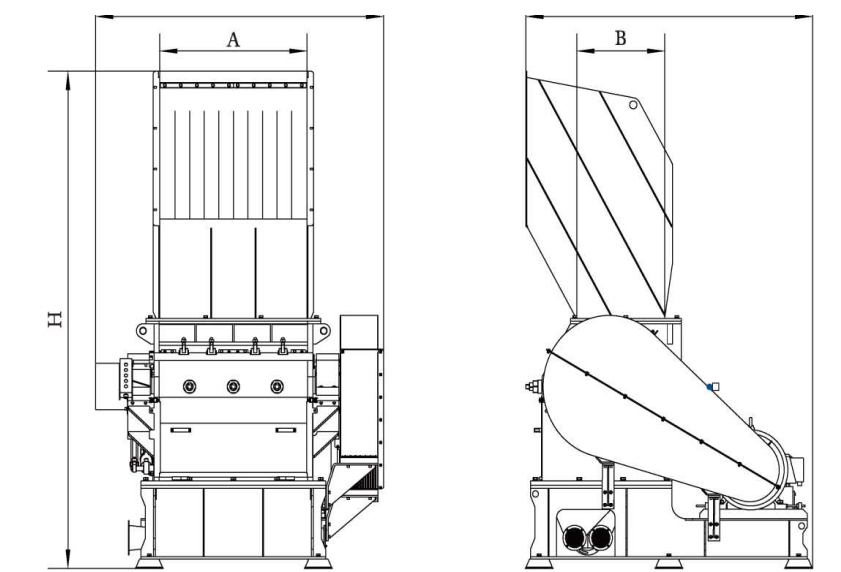

| AxB (mm)
Hopper opening |
800x520 |
1000x520 |
1200x520 |
1000x660 |
1200x660 |
1200x800 |
1600x800 |
| Rotor diameter (mm) | 520 | 520 |
520 |
660 |
660 |
800 |
800 |
| Rotor speed (RPM) | 520 | 520 |
520 |
460 |
460 |
460 |
460 |
| Rotor knife qty (pcs) | 5x2 |
5x2 |
5x2 |
5x2 |
5x2 |
7x2 |
7x4 |
| Counter knife qty (pcs) | 3x2 |
3x2 |
3x2 |
3x2 |
3x2 |
3x2 |
3x4 |
| Motor power (kW) |
45 |
55 |
75 |
75 |
90 |
110 |
160 |
| Screen opening (mm) | 012 |
012 |
012 |
012 |
012 |
012 |
012 |
| LxWxH Dimension (mm) | 1970x1780x
3170 |
1970x1980x
3170 |
1970x2180x 3170 |
2260x2040x 2260x2240x 2630x2470、2630x2870* 3530 3530 3900 3900 |
|||
| Weight (kg) |
3850 |
4320 |
4820 |
5430 |
6860 |
10030 |
14405 |
| Item Model |
PTS260 |
PTS360 |
PTS480 |
| AxB Hopper opening (mm) |
600x260 |
600x320 |
800x420 |
| Rotor Diameter (mm) |
260 |
320 |
420 |
| Rotor speed (RPM) |
560 |
520 |
520 |
| Rotor knife qty (pcs) |
3x2 |
3x2 |
3x2 |
| Counter knife qty (pcs) |
2x1 |
2x1 |
2x1 |
| Motor power (kW) |
15 |
22 |
37 |
| Screen opening (mm) |
012 |
012 |
012 |
| LXWXH Dimension (mm) |
1300x1300x 2150 |
1450x1450x 2300 |
1650x1700x 2400 |
| Weight (kg) |
1250 |
2200 |
2700 |
