Scope of application:Film categories: PE waste film, PP waste film, PVC waste film, agricultural filmindustrial film waste filmWoven bags: feed woven bags, woven bags of cement, flour woven bagsspace bags, tons of bags, etc

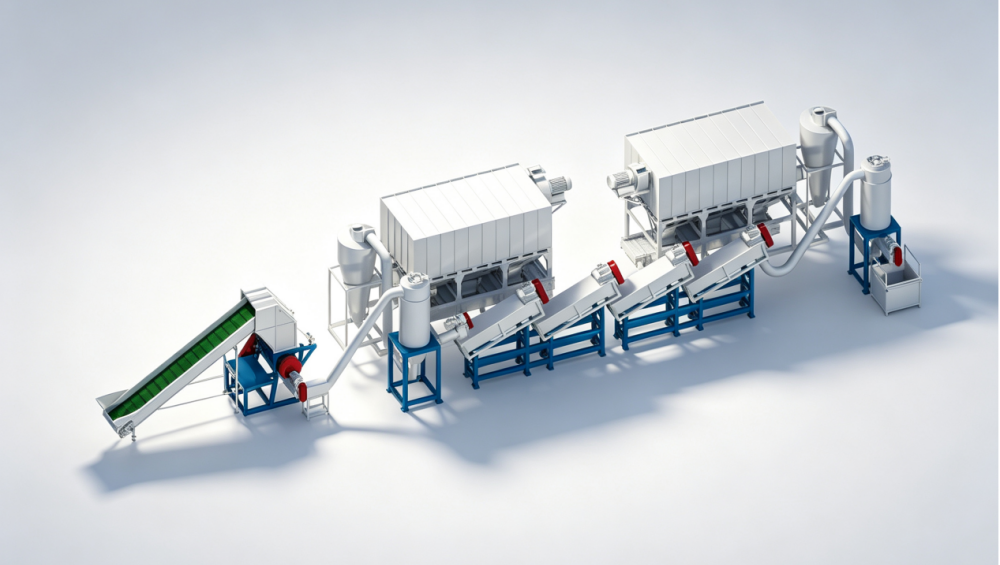

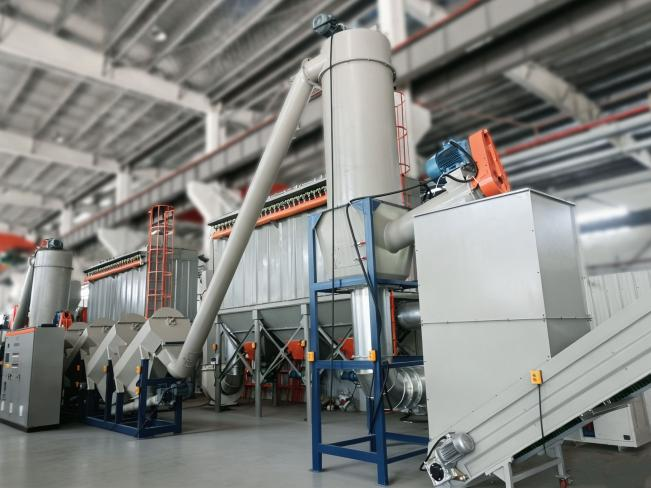

Waterfree cleaning recycling production line, the use of friction, grinding, collision and other physical force, so that waste plastic pieces and hard objects, fragments and fragments between the collision, friction and grinding. Attached to the plastic sheet dirt and metal impurities, sent to the cyclone and cyclone dust removal and separation, andultimately get a clean waste plastic piecesProcess:
According to the principle of waste plastic water recycling, the process consists of three parts: pretreatment.- cleaningseparation
Scope of application:
Film categories: PE waste film, Pp waste film, PVC waste film, agricultural film, industrial film waste filmWoven bags: feed woven bags, woven bags of cement, flour woven bags, space bags, tons of bags, etc
| Model | Output(kg/h) | Total power |
| PTC-500 | 500kgh | 200kw |
| PTC-1000 | 1000kgh | 310kw |
| PTC-2000 | 2000kgh | 520kw |
Technical description :

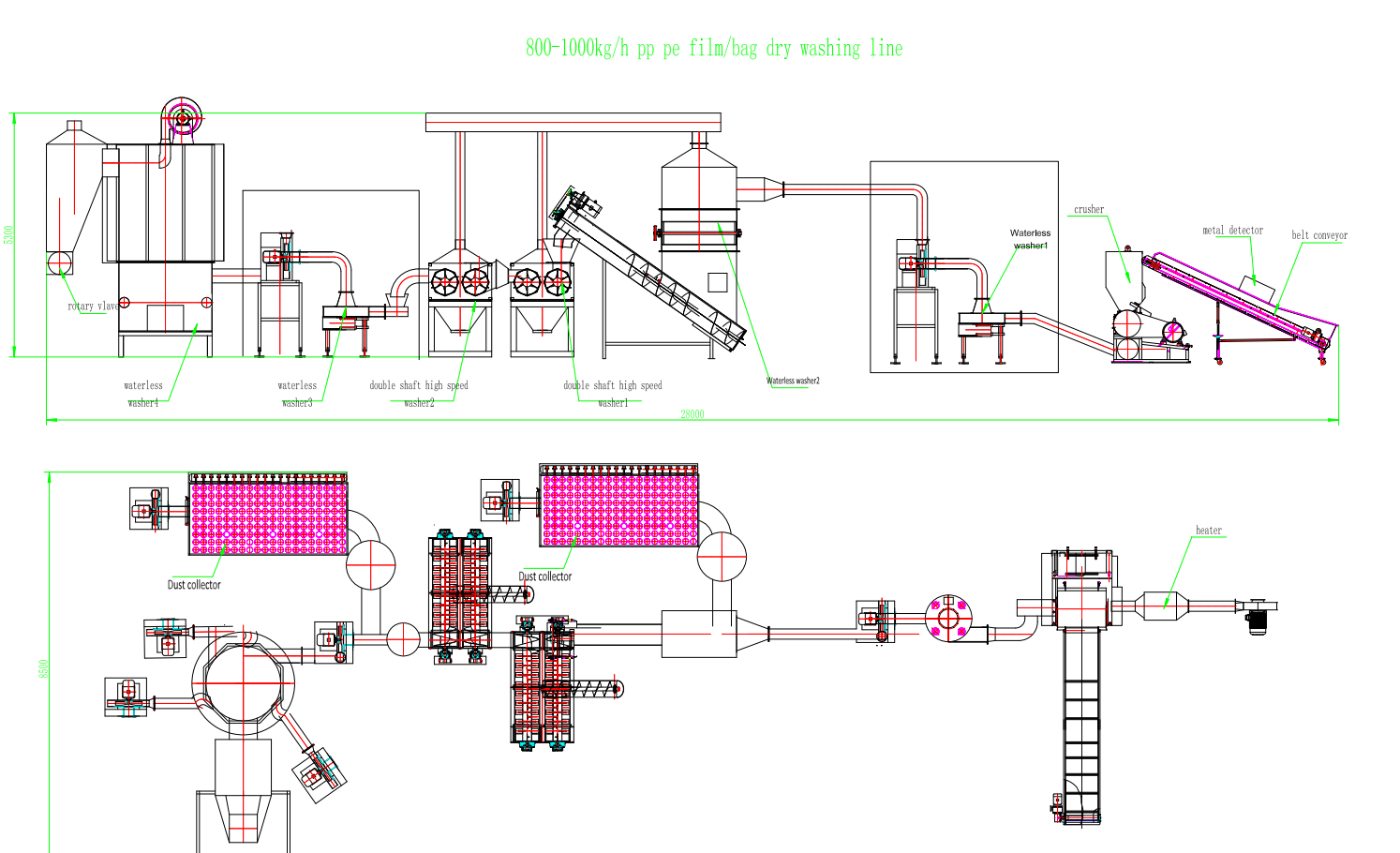

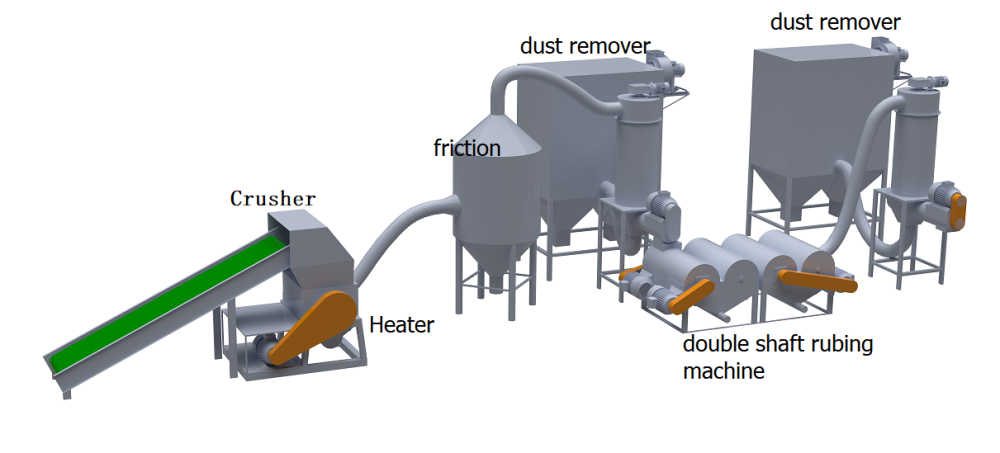

Machine list:
|
Item |
Description |
|
1 |
Belt conveyor ：
Feeds raw waste material; supports manual sorting station option for removing large foreign objects.
|
|
2 |
Dry crusher:
Cuts films and woven-bag scrap into uniform-size flakes for follow-up dry-washing.
|
|
3 |
Heater :
Auxiliary heating unit; reduces material surface viscosity for better dry-washing effect on sticky-contaminated plastics.
|
|
4 |

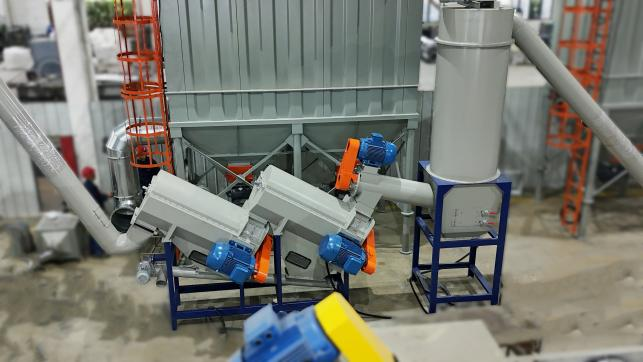

Waterless washer1:
Primary physical scrubbing to remove heavy dirt and sand from shredded plastic.
|
|
5 |
High speed friction washer1:
Intensive mechanical friction removes stubborn attachments on plastic surfaces.
|
|
6 |
Waterless washer2
|
|
7 |

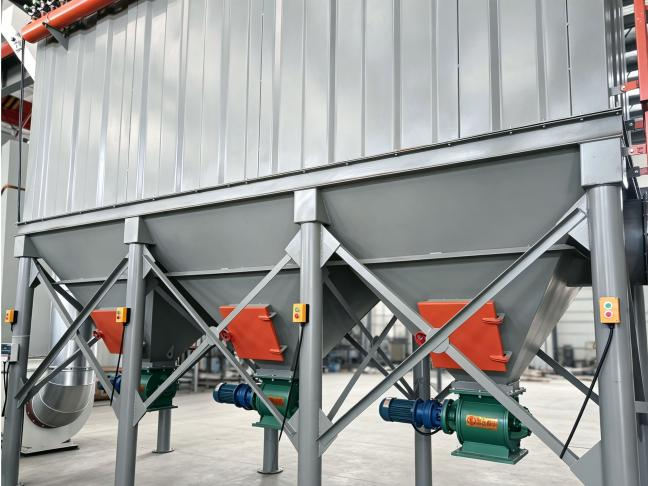

Dust collector :
Large-volume dust collection system; captures dust, sand and light impurities generated during dry-washing process.
|
|
8 |

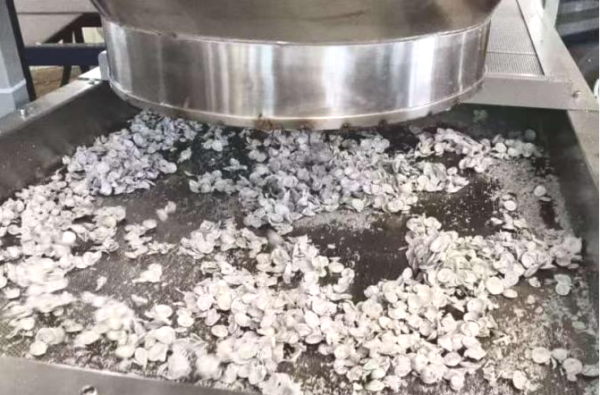

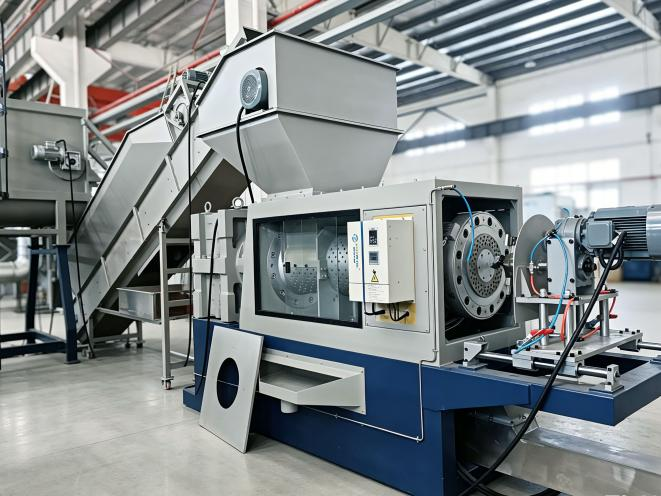

Squeezer melter :
Squeezes, compacts and pre-melts dry-cleaned plastic flakes; reduces bulk volume and improves feeding stability for pelletizing or chemical recycling .
|
|
9 |

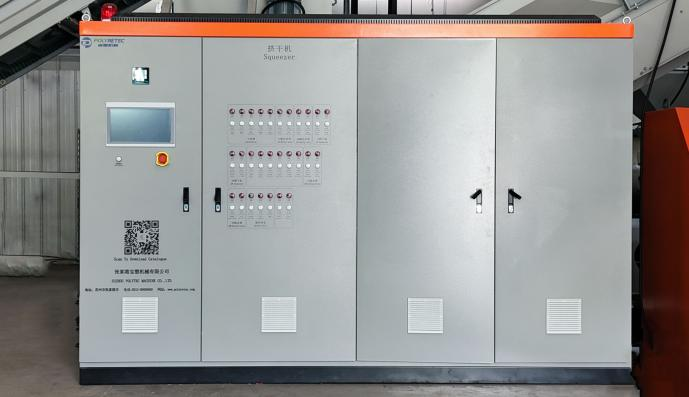

Atex Control system :
Central PLC control cabinet with touch-screen HMI; monitors full-line status, features interlock protection and fault alarm functions.
|
✅ Zero-water consumption No process washing water required. Save water resource investment and completely avoid wastewater treatment expenses, ideal for areas with water shortage or strict sewage-discharge regulations.
✅ High-efficiency physical cleaning Multi-level combination of crushing, friction scrubbing and cyclone separation. Effectively remove soil, sand and surface attachments from films & woven-bag waste.
✅ Lower overall operating cost Cut costs for water supply, water treatment and chemical detergent consumption. Optimized power layout for continuous large-capacity recycling.
✅ Compact & reliable layout Modular structure, easy installation and maintenance. Matched with dust-removal system to keep factory workshop environment clean.
✅ Safe automatic control ATEX-compliant control system with real-time monitoring, interlock protection and fault warning, ensuring stable long-time running.
✅ Flexible downstream connection Clean dry flakes can directly connect to squeezer-melter or plastic pelletizer to realize full-chain waste-plastic regeneration.
Application Scenarios Agricultural film recycling plants Waste woven-bag / big-bag recycling workshops Plastic recycling projects restricted by water resources or sewage-discharge policy Pre-processing for PE / PP waste film before pelletizing
