HDPE Bottle Flakes Plastic Pelletizing Line
HDPE Bottle Flakes Plastic Pelletizing Line

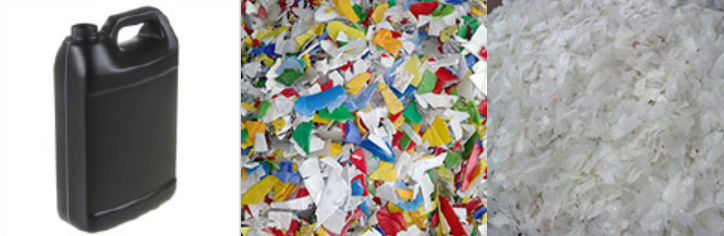

Raw Material
HDPE bottle flakes pelletizing line is dedicated to HDPE bottle recycling and granulation, such as milk bottles, yogurt bottles, hollow bottles, etc. HDPE bottle flakes pelletizing line has the characteristics of good performance, high output, low energy consumption and convenient operation. HDPE bottle flake pelletizing line has the characteristics of crushing, extruding and granulating. When recycling bottle flakes, it does not need to be crushed separately and can be directly recycled and granulated.
Rigid plastic pellets
Squeezed drying waste after washing
Features
1. Single screw and twin screw can be used according to user requirements or characteristics of raw material, and the style can be single-stage, double-stage, etc.
2. The pelletizing method can be selected: water-ring pelletizing or cold strand pelletizing.
3. HDPE bottle flakes can be directly put into the main machine to produce granules.
4. HDPE bottle flakes pelletizing line is equipped with fully automatic control cabinet and PLC operating system, which is easy to operate and stable in performance.
5. Low energy consumption, remarkable energy-saving effect, high output, electromechanical integration.

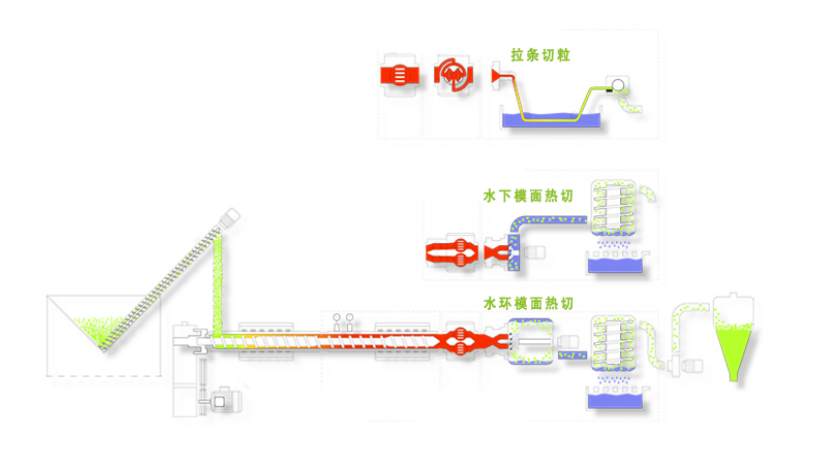

6. The crushed material granulation equipment can also be equipped with a double-station large-flow plate hydraulic screen changer and a mobile hydraulic station. According to different materials, different granulation auxiliary machines can be configured to form different granulation production lines, as shown in the following figure.
Parameters
|
Model |
PTC30 |
PTC45 |
PTC65 |
PTC90 |
PTC100 |
|
Diameter （mm） |
30 |
45 |
65 |
90 |
100 |
|
l/d |
18-42 |
||||
|
Spinning Speed (rpm) |
10-150 |
||||
|
Capacity （kg/hr） |
2-40 |
10-60 |
100-150 |
150-220 |
220-320 |
|
Model |
PTC120 |
PTC150 |
PTC160 |
PTC180 |
PTC200 |
|
Diameter （mm） |
120 |
150 |
160 |
180 |
200 |
|
l/d |
18-42 |
||||
|
Spinning Speed (rpm) |
10-150 |
||||
|
Capacity （kg/hr） |
300-400 |
400-550 |
600-700 |
700-900 |
1000-1300 |
| PolytecModel | PTCS | ||
| Final product | Plastic granules | ||
| Structure | Feeding hopper, extruder, mould, cold water tank, dryer, pelletizer, silo | ||
| Raw materials | HDPE,LDPE,LLDPE, PP, BOPP, PA, PC, PS, PU, EPS,ABS | ||
| Output | 100kg~ 1200 kg/hr | ||
| Fending system | Rigid materials can be fed directly(For processing light thin films, the force feeder can be installed) | ||
| Screw diameter | 65~180mm (customized) | ||
| L/D | 30/1,32/1,34/1,36/1 (customized) | ||
| Screw material | 38CrMoAl | ||
| Degassing hole | Double degassing hole, single degassing hole or no degassing hole (customized) | ||
| Granulation method | Air cooling die face pelletizer or water cooling strand cutter | ||
| Cooling method | Water cooling | ||
| Voltage | Customized (Example: America 480V 60Hz, Mexico 440V / 220V 60HZ, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz) | ||
| Optional accessories | Metal detector (S+S), conveyor belt, screw loader, forced feeder | ||
| Delivery day | 60 days | ||
| Warranty | One year | ||
| Technical support | Engineers available to service machinery overseas | ||
| PolytecModel | PTCS | ||
| Product | Plastic Pellets | ||
| Recycling Machine Structure | Feeding hopper, extruder, stretch die, cold water tank, dryer, pelletizer, silo | ||
| Recycled Material | HDPE,LDPE,LLDPE, PP, BOPP, PA, PC, PS, PU, EPS,ABS | ||
| Production Range | 100kg~ 1200 kg/hr | ||
| Feeding System | Direct hopper feeding of heavy and hard return materials (for processing light film sheets, a forced feeder can be installed) | ||
| Screw Diameter | 65~180mm (Customized) | ||
| Screw length to diameter ratio | 30/1,32/1,34/1,36/1 (Customized) | ||
| Screw material | 38 chromium molybdenum aluminum | ||
| Degassing hole | Single exhaust or double exhaust, no exhaust for non-printed film (customized) | ||
| Granulation Method | Die face hot cutting or strand cutting | ||
| Cooling Method | Water cooling | ||
| Voltage | Customized (for example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) | ||
| Options | Metal detector (S+S), conveyor belt, screw feeder, forced feeder | ||
| Delivery date | 60 days | ||
| Warranty | 1 year | ||
| Technical Support | Installation and commissioning training | ||
Details of plastic pelletizing production line:
Feeding Device
Material can be directly added to the extrusion section through a screw feeding device (or a conveyor belt feeding device). The feeding speed is automatically adjusted by detecting the load of the extruder motor and controlling the current ampere load to prevent excessive feeding or insufficient feed.

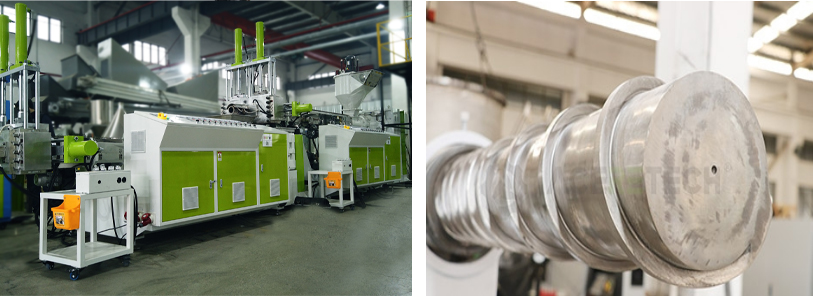

Extruder
It consists of a gear reducer (high torque, low noise, external cooling cycle system), a nitriding 38CrMoA1 screw, a barrel (38CrMoAlA, nitriding, controlled by temperature control ), and a vacuum system.
Melt filter screen changer system
Suitable easy-to-operate filtration systems can be selected according to the condition of the raw material, and the dirt is filtered to ensure the pureness of the final pellets. Optional：
a.Laser screen changer - automatic scraping technology, can effectively reduce the frequency of cleaning and replacement;
b.Backflush screen changer - automatic cleaning mesh, greatly reducing the frequency of the filter replacement, reducing labor;
c.Double-piston large-scale screen changer - larger filter area, automatic and hydraulic;
d.Plate screen changer - easily operate, screen filter can be recycled, save cost, suitable for crude filtration and fine filtration.
Laser screen changer (optional for HDPE/PP regrinds 100micron)
Applications
PTJ continuous melt filters are suitable for processing all standard polyolefins and polystyrenes with the exception of PVC、PVDC、EVA; they are designed to remove foreign particles such as paper, aluminum, wood, elastomers (rubber, silicone) or high-melting polymer composites from heavily contaminated materials.
Examples
|
Processing material |
contamination |
Contamination by weight % |
Filtration fineness |
Waste contamination% |
Material losses % |
|
PE |
paper |
5 |
30-120mesh |
58-67 |
3-4 |
|
PPHDPE |
PET |
4 |
57-66 |
2-3 |
|
|
PS |
aluminum |
3-4 |
57-60 |
2-3 |
|
|
PP |
rubber, silicone |
2-3 |
55-60 |
1-2 |
|
|
PE、PP |
composite |
0.5 |
55-65 |
0.3-0.4 |
Technical data
|
model |
PTJ300 |
PTJ400-D |
PTJ500-D |
|
Filter diameter in mm |
1X300mm |
2X400mm |
2X500mm |
|
Filter area in cm2 |
575cm² |
2112cm² |
3472cm² |
|
Filtration fineness |
120-600μm 30-120Mesh |
||
|
Maximum operating pressure in bar |
250bar |
250bar |
250bar |
|
Number of heating zones |
4 |
5 |
6 |
|
Installed heating capacity in KW |
12 |
28 |
42 |
|
Engine power in KW |
3.0 |
5.5 |
11.0 |
|
Motor power discharge screw in KW |
1.5 |
2X1.5 |
2X2.2 |
|
Throughput capacity in kg/h |
300-500Kg |
500-1200Kg |
1000-2000Kg |
With two independent internal filter rooms and two independent unloading valves
Water-ring die face pelletizing system
Water ring granulation speed is controlled by inverter, including: hot cutting head, shunt cone, water hood, tool holder, blade , blade shaft etc.

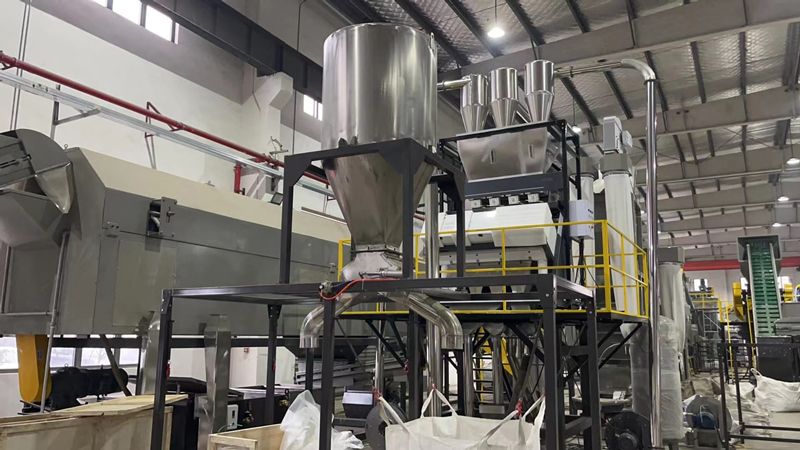

Packing System
The dry vibrator is used in conjunction with the horizontal dewatering machine, the drying effect is better, and the energy consumption is lower;
High quality and durable machines, lower investment costs；
Low energy consumption, high yield；
Overseas installation and training are provided；
Machine warranty, spare parts inventory and on-time delivery.
